ARPring

Simple ringmodulator using a 4011

Courtesy/Thanks to:

Description: This is a simple ringmodulator using only half a 4011, 7 resistors, 2diodes and a OpAmp.

Comments

You need to be logged in to add a comment.

Share
Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Files

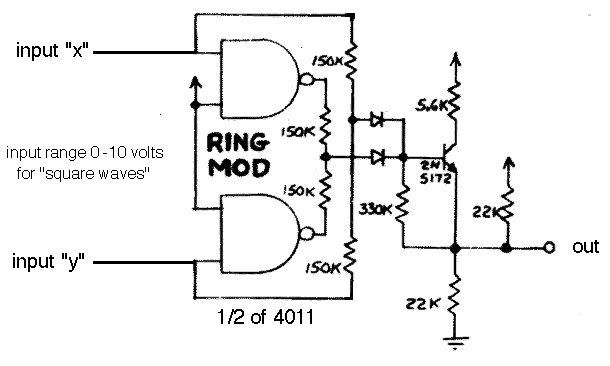

   Schematics for the ARPring ringmodulator
Parts used
HEF4011
   Quadruple 2-input NAND gate
1N4148
   High speed Switching Diode
