Pinconfiguration for the TL071   Picture is courtesy of:

TL071

Low-Noise JFet-input Operational Amplifier

Other names for this product: TL 071,
Courtesy/Thanks to:

Description: The JFET-input operational amplifiers in the TL07_ series are designed as low-noise versions of the TL08_

series amplifiers with low input bias and offset currents and fast slew rate. The low harmonic distortion and low

noise make the TL07_ series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier

features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single

monolithic chip.

The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized

for operation from –40°C to 85°C. The M-suffix devices are characterized for operation over the full military

temperature range of –55°C to 125°C.

Comments

You need to be logged in to add a comment.

Added 3/7/2012 10:31:46 AM by dave

Important note: The file tl071.gif does not have the right pinout. Please use the tl071.png !

Report Abuse

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
IC


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
slos080d.pdf
   Datasheet for the TL07X series OpAmps

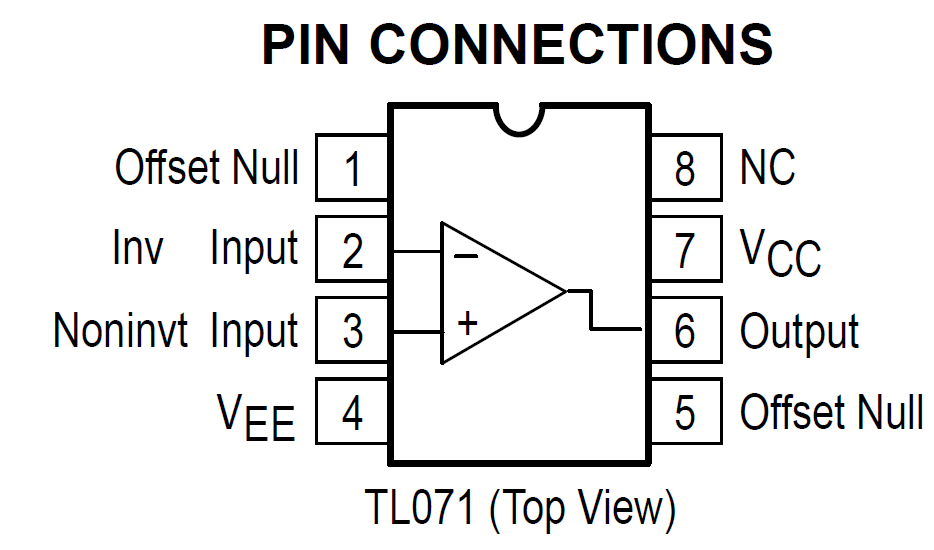

   Pinconfiguration for the TL071
