80-2

Voltage Controlled Oscillator

Courtesy/Thanks to: Digisound

Description: Voltage Controlled Oscillator based on CEM 3340.
Exponential response of 1V/octave. Fully temperature compensated. Very accurate in the range 5Hz to 10kHz (suitable for polyphonic use) but will operate over a range of 0.1Hz to 50kHz. Six outputs available simultaneously : 0-10V sawtooth, pulse, sine and triangle together with ±5V sine and triangle waves. Linear and exponential frequency modulation. Voltage and manual control of pulse width from 0 to 100%. Three synchronisation techniques may be used at the same time : hard negative, hard positive and soft.

(text courtesy of: http://www.digisound80.co.uk/digisound/)

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
VCO


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

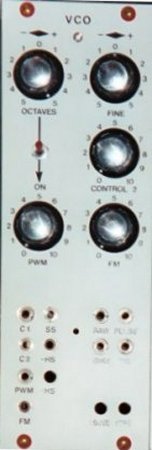

   Frontpanel view of the 80-2 VCO
   Frontpanel view of the 80-2 VCO
80-2.pdf
   Service manual, with Schematics, PCB, componentlist for the 80-2 VCO

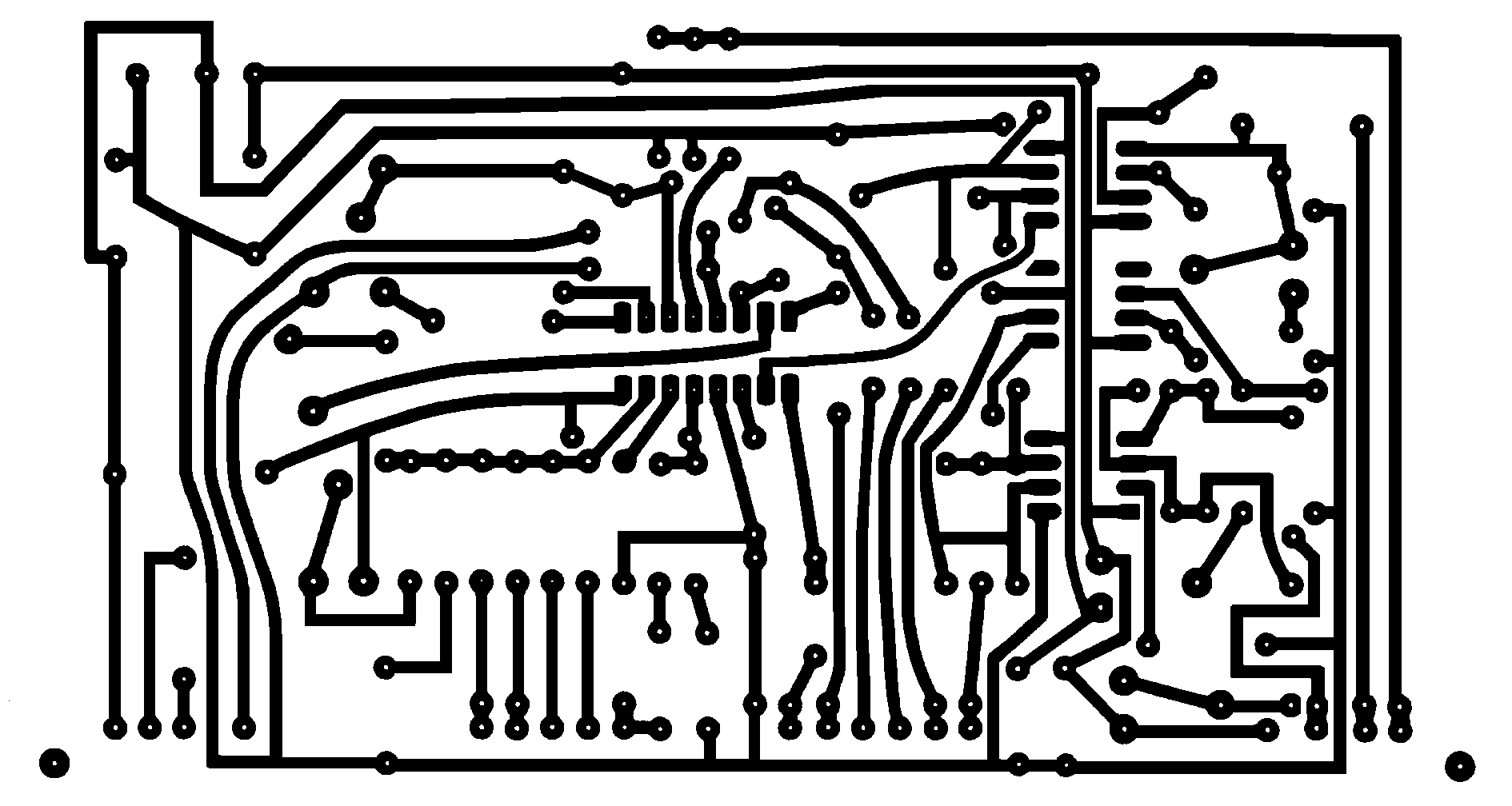

   PCB for the Digisound 80-2 and 80-3
Manufacturers
Digisound Ltd
   Manufacturer of the Digisound 80 Modular system. Charles Blakey ran a small family-owned company cal
Modular mother system
Digisound 80
   Modular Synthesizer
Parts used
BZY88
   Zener Diode
LM1458
   Dual Operational Amplifier
CEM3340
   Voltage Controlled Oscillator
1N4148
   High speed Switching Diode
CA3080
   2MHz, Operational Transconductance Amplifier (OTA)
TL082
   JFet-input Operational Amplifier
