MXR Distortion +

Distortion stomp box

Courtesy/Thanks to:

Description: For subtly different sounds try replacing D1 + D2 with 1n34's for fuzzy sounds, 1n4148 for more buzz, LEDs for more crunch or a 1n34 array. The original diodes were germanium 1n270 types.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

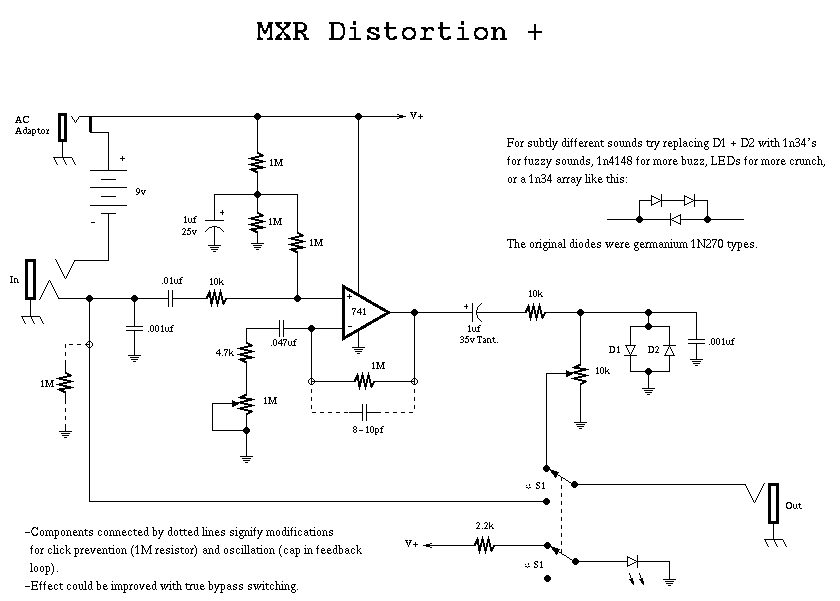

   Schematics for the MXR Distortion plus
Parts used
1N34
   Point contact Germanium diode
1N270
   Germanium diode
1N4148
   High speed Switching Diode
uA 741
   Frequency-compensated operational amplifier
