SD-2

Dual Overdrive

Courtesy/Thanks to: Boss

Description: From the Boss Guitar Effects Guide Book vol.14 (1999):
The SD-2 features independent circuits to produce two totally different overdrive effects. In LEAD mode you get a thick, smooth sound. CRUNCH mode gives you a fat, crunchy sound that's tailor-made for riffs and backing parts. You can even independently modify these two tones with the dual-purpose LEVEL, TONE, and DRIVE controls. What's more, the LEAD and CRUNCH modes can be switched with the pedal switch or optional FS-5L.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

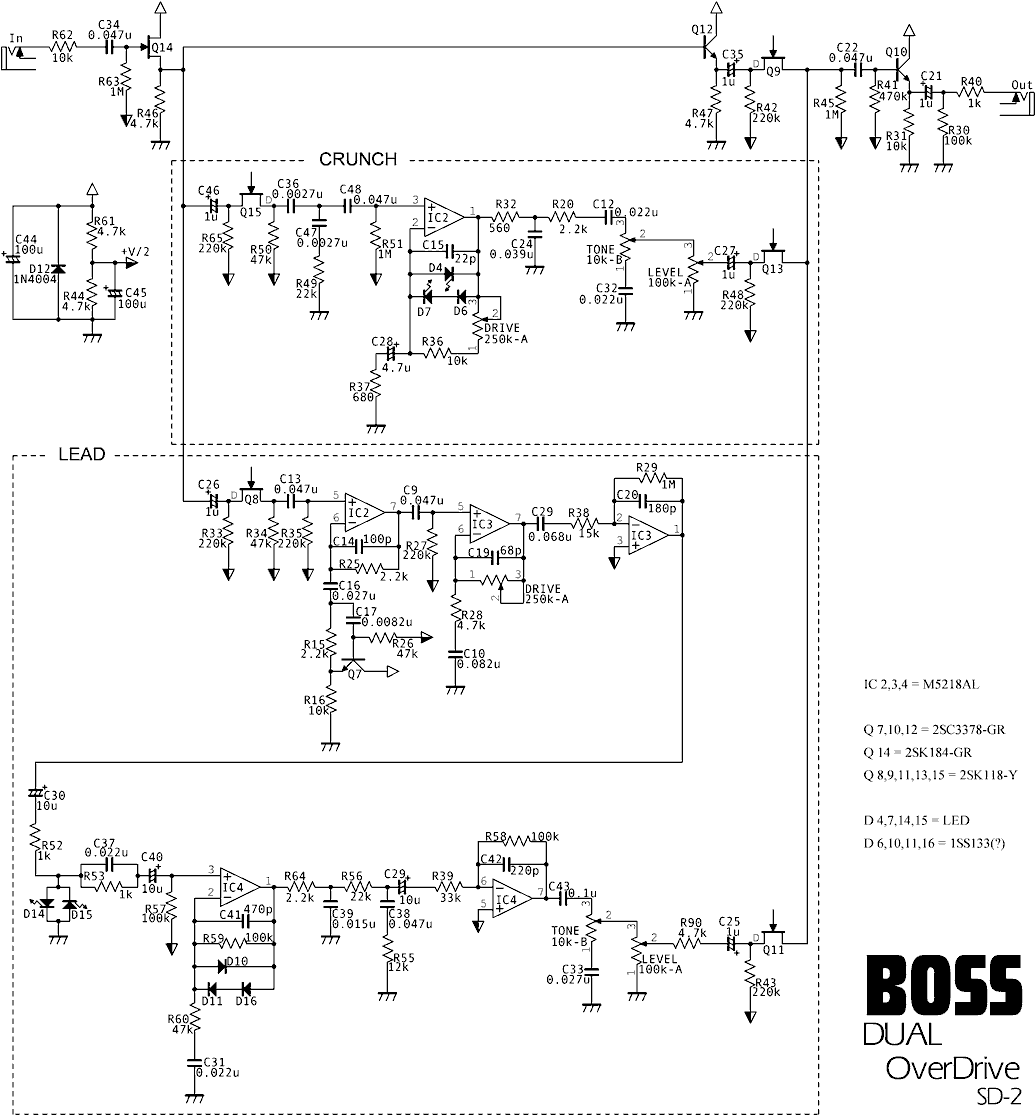

   Schematics for the Boss SD-2 Dual Overdrive

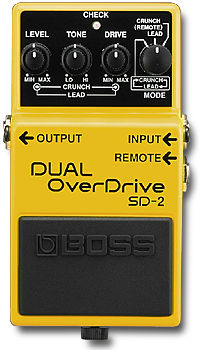

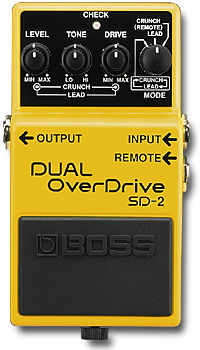

   Picture of the SD-2
Manufacturers
Boss

Parts used
2SK184
   Field Effect Transistor Silicon N Channel Junction Type
2SK118
   Field Effect Transistor Silicon N Channel Junction Type
M5218
   Dual Low-noise operational amplifier (dual power supply type)
2SC3378
   NPN Transistor
ISS133
   Switching diode
1N4004
   General Purpose Rectifiers
