Function generator using 1458

fixed function generator

Courtesy/Thanks to: ?

Description: This design is for a fixed 1kHz function generator. It can probably be modified for variable frequency.

It outputs Square, Triangle and Sinus waveforms.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

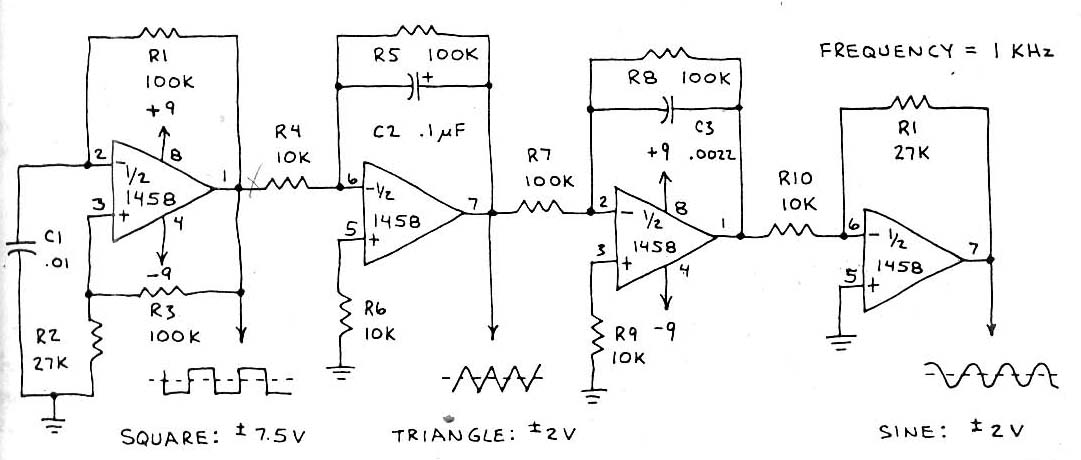

   Schematics for the function generator using 1458.
