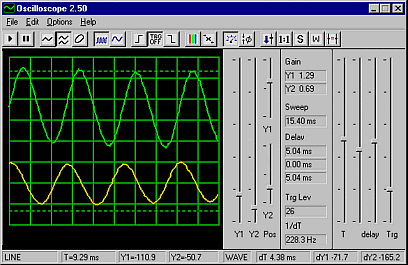

Picture of how Oscilloscope V2.51 looks like.   Picture is courtesy of:

Oscilloscope V2.51

Digital Oscilloscope using PC Sound Card for Input

Other names for this product: Zelscope,
Courtesy/Thanks to: zeld

Description: An oscilloscope is vital for anyone building an electronic musical instrument, and I have found this program on the net, and thought it might fit here.

Oscilloscope for Windows is a Windows application that converts your PC into a powerful dual-trace oscilloscope. Oscilloscope uses your PC's sound card as an Analog-to-Digital Converter (ADC) to digitize any input waveform (speech, music, electric signal, etc.) and then presents it on the monitor in real time, allowing the user to control the display in the same way as on a conventional "standalone" scope, for example change gain, timebase or plot Lissajous patterns.





Main features

  • Any sound card can be used
  • Single trace, dual trace and XY modes
  • Spectrum analyzer (realtime, built-in)
  • 20 kHz bandwidth



  • Triggering
  • Point-and-click meter function
  • Storage mode
  • Data export to Windows clipboard or disk file

    Oscilloscope is free for personal use and can be redistributed provided it is not changed in any way, and no fee is requested. Terms for including Oscilloscope into any software packages are available from the author.
    The Oscilloscope is supplied "as is"; both the author and Moscow State University bear no responsibility with respect to any consequences of use or inability to use the Oscillloscope. The work on the Oscilloscope in not related to its author's study at MSU and is not supported by MSU. The source code for the Oscilloscope cannot be found on any of MSU-operated computers.

  • Comments

    You need to be logged in to add a comment.

    Editing and adding
    You need to be logged in to edit and add files and urls etc.
    Categories & Tags
    Popular tags for this:


    You must be logged in to add tags.

    Inventory & Trading

    You need to be logged in to administer your inventory

    No one is selling this product at this time.

    Similar on Ebay
    Files
    osc251.zip
       the program in a ZIPfile.
       Picture of how Oscilloscope V2.51 looks like.
       Picture of how Oscilloscope V2.51 looks like.
    Links
    www.zelscope.com/
       Homepage of Zelscope, the software that makes your pc and soundcard into an oscilloscope.
    polly.phys.msu.su/~zeld/oscill.html
       Homepage for the Oscilloscope V2.51
