Drawdio
A Pencil that Lets You Draw Music
Courtesy/Thanks to: Jay Silver
Categories & Tags:
555
vco

You must be logged in to add tags.
Description:
Turn Almost Anything into a "Theremin"

What is Drawdio?
Imagine you could draw musical instruments on normal paper with any pencil (cheap circuit thumb-tacked on) and then play them with your finger. The Drawdio circuit-craft lets you MacGuyver your everyday objects into musical instruments: paintbrushes, macaroni, trees, grandpa, even the kitchen sink...
Comments
Added 2009-06-19 12:10:55 by SomaticCircuits
Quick build and lots of fun!!! Plenty of room for mods , CV Pencil for your synth mmmm.... Thanks!
Report Abuse
You need to be logged in to add a comment.

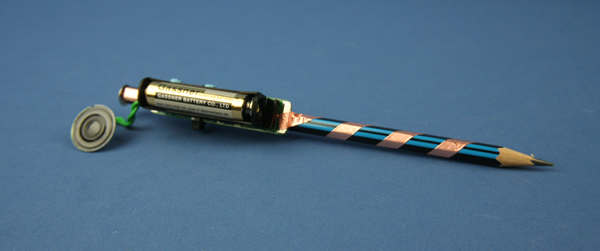

Picture of a newly finsihed assembled kit from Adafruit, built by Marc de Vinck for Make.   Picture is courtesy of: MAKE Blog, Marc de Vinck
