V2162M

Dual Low Noise VCA

Courtesy/Thanks to: CabinTech Global LLC

Description: The V2162 is a dual voltage-controlled amplifier (VCA) that is designed for applications such as audio compressors/limiters, equalizers and oscillators. This is a high-performance current-in/current-out device with two opposing-polarity, voltage-sensitive control ports in each channel. Fabricated in a low-noise process utilizing high hFE, complementary NPN/PNP pairs, the V2162 can offer high performance with minimal support circuitry.

Two Independent VCA Channels
Wide Dynamic Range: >115dB
Wide Gain Range: >130dB
Exponential (dB) Gain Control
Low Distortion: 0.04% typ.
Dual Control Ports (pos/neg)

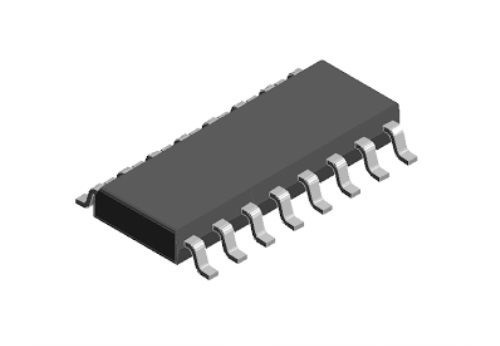

Package: SOP-16L
