MIDI-Thru box

Courtesy/Thanks to: Asko Komsi

Description: A simple MIDI thru box.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
MIDI


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

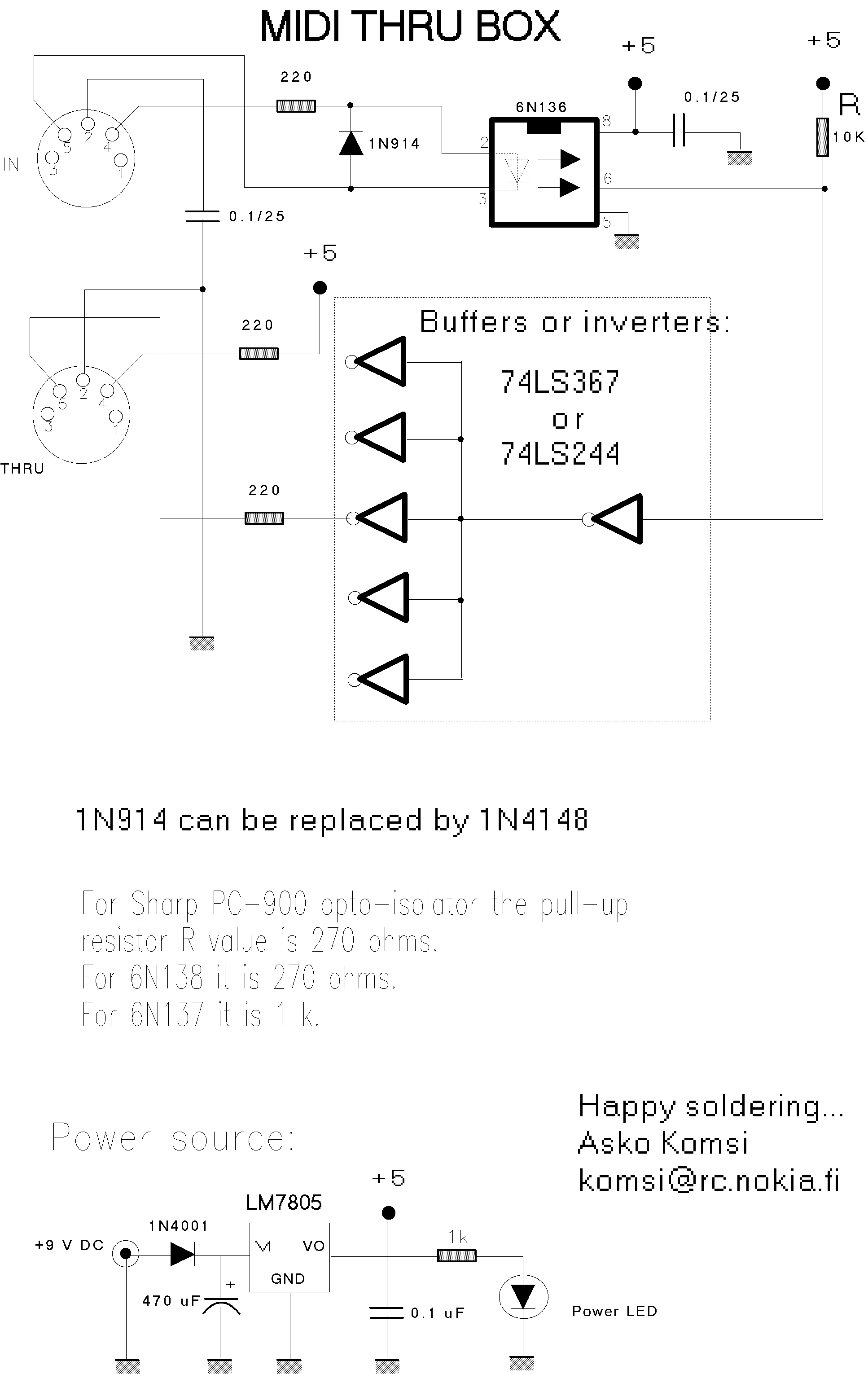

   Schematics for the MIDI-thru box, and PSU
Parts used
6N138
   LOW INPUT CURRENT HIGH GAIN SPLIT DARLINGTON OPTOCOUPLERS
6n136
   8-Pin DIP 1 Mbit/s Single-Channel High Speed Transistor Output Optocoupler
6n137
   8-Pin DIP 10 Mbit/s Single-Channel High Speed Logic Gate Output Optocoupler
LM7805
   5V Positive Voltage Regulator
1N4001
   General Purpose Rectifiers
1N914
   High Conductance Fast Diode
74LS367
   HEX BUS DRIVERS WITH 3-STATE OUTPUTS
74LS244
   Octal buffer/line driver; 3-state
1N4148
   High speed Switching Diode
