PV-1
Pitch to Voltage Converter
Courtesy/Thanks to: EFM
Description: Features Excellent tracking,
+/-12V or +/-15V
Based on the "Etherwave Pitch to Voltage
Converter" by Bob Moog/Big Briar.
A pitch to voltage converter takes a
frequency input and converts it to a
voltage output. There are several forms
of this
circuit, both digital and analog. Most
of these can be grouped into two basic
classes. The Tachometer circuit, and the
Ramp Sample/Hold.
Comments
You need to be logged in to add a comment.
Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
You must be logged in to add tags.
Inventory & Trading
You need to be logged in to administer your inventory
No one is selling this product at this time.
Files
| pv1_611.pdf | |
| Information, parts list, schematics pcb and assembly plan for the PV-1 Pitch to Voltage Converter | |
| efm_pv-1.jpg | |

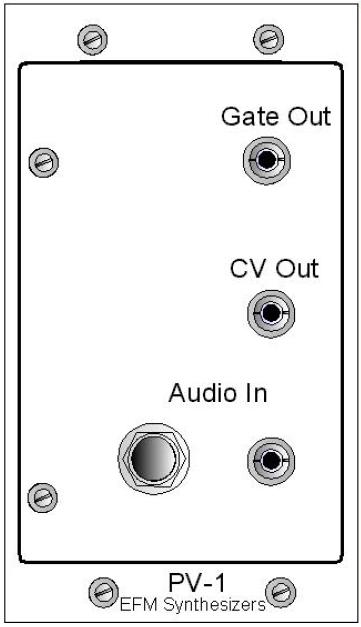

| Picture of the frontpanel design of the PV-1 | |
Manufacturers
| EFM | |
| Electronic for music | |
Parts used
| HEF4017 | |
| 5-stage Johnson counter | |
| 4013 | |
| Dual flip-flop | |
| TL082 | |
| JFet-input Operational Amplifier | |
| CD4016 | |
| Quad Bilateral Switch | |
| LM13700 | |
| Dual Operational Transconductance Amplifier with Linearizing Diodes and Buffers | |
| 2SC1583 | |
| NPN | |
| TL062 | |
| Dual Low-Power JFET-Input General-Purpose Operational Amplifier | |
| MAT02 | |
| Low Noise, Matched Dual Monolithic Transistor | |
| 4093 | |
| Quad 2-Input NAND Schmitt Trigger | |
| 2N3906 | |
| PNP switching transistor | |
| 2N3904 | |
| NPN switching transistor | |
| LM13600 | |
| Dual Operational Transconductance Amplifiers with Linearizing Diodes and Buffers | |
