Solid State Reverb Unit

ETI Reverb box

Courtesy/Thanks to: ETI / Elektor / Charles Blakey

Description: "Where have all the spring lines gone? Gone to lesser projects in other magazines, that's where. Meanwhile we present this cheap, simple, but high quality unit using solid state technology. Design by Charles Blakey

Comments

You need to be logged in to add a comment.

Added 9/18/2011 9:20:48 PM by mister707

El PDF completo con el articulo y mods de autor japones. http://blogs.yahoo.co.jp/srvkwschar/folder/1594082.html

Report Abuse

Added 9/18/2011 9:10:16 PM by mister707

I send New PCB & Layout, mod page japan, sorry for my englis bad.

Report Abuse

Added 9/18/2011 9:08:58 PM by mister707

Aca les mando el articulo de original de la revista con un layout nuevo y corregido de una web japonesa.

Report Abuse

Added 6/26/2009 11:01:03 PM by fred

For the complete misery i build the mini chorus,but like the reverb is not fonctional too. i think that errors are due to the copyright problem maybee.

Report Abuse

Added 6/26/2009 10:57:34 PM by fred

hello electrocard i finish to build this reverb WESTERDAY but unfortunately she is not functional GRRRRRRRR as you said i find somme difference beetwin the pcb and shematic i think that the shematic is correct in a feew days i will try to modify the pcb we will see?????

Report Abuse

Added 3/21/2008 9:58:39 PM by electrocard

Has anyone tried to build this reverb unit? I find many discrepancies between the pcb board and the actual schematic. Any Ideas?

Report Abuse

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
eti-mn3011reverb.pdf
   Article from ETI explaining the SSRU, schematics pcb layout and assembly plan

eti_reverb_mods_send_by_mister707.p

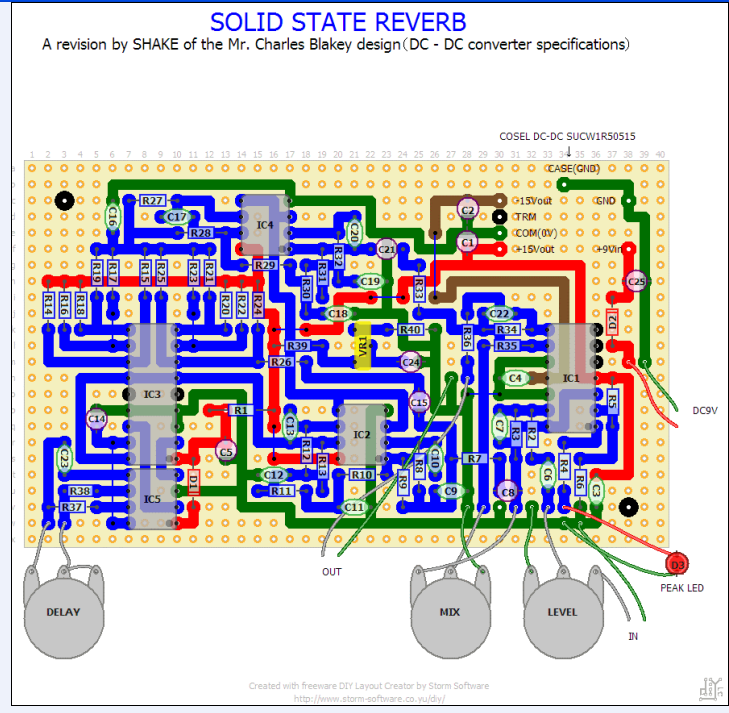

   Excuseme Layout & PCB; AH siempre me equivoco; aca va:
Parts used
LM358
   Low Power Dual Operational Amplifier
LM78L15
   15V 3-Terminal Positive Regulators
1N4148
   High speed Switching Diode
TL074
   Low-Noise JFet-input Operational Amplifier
MN3011
   3328-Stage BBD with 6 Taps
MN3101
   Clock Generator/Driver Cmos LSI for BBD
